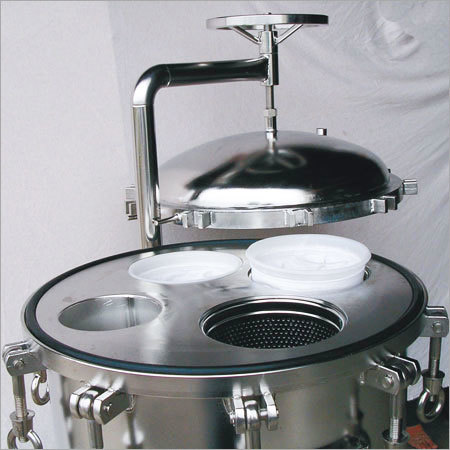

Multi Bag Filter System

Multi Bag Filter System
Multi Bag Filter System
Product Code : DF 25
Brand Name : DEFINE FILTRATION INC.
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cheque
  • Supply Ability
  • 25000 units Per Month
  • Delivery Time
  • 1 Months
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Packing in carton boxes.
  • Main Domestic Market
  • All India
  • Certifications
  • ISO9001-2008
Product Description

We are the leading producers of Multi Bag Filter System positioned in Gujarat, India. We offer various categories of Multi Bag Filter Systems that are useful in different types of purposes such as Cutting Oils, Varnishes, Lacquers, Paints, Petroleum Derivatives etc. Our product has made using premium stainless steel material to render outstanding performance. Being a professional in the domain, we make sure to offer high quality product at the market leading rates.

Technical Specifications:

  • Material of construction: SS 316L, SS 316, SS 304, carbon steel (All Grade), mild steel, alloy metals, polypropylene, lead lining, rubber lining, ptfe lining
  • Sizes Bag Filter System Suitable for: Ø 4" x 10" Long Filter Bag, Ø 4" x 17" Long Filter Bag, Ø 7" x 17" Long Filter Bag, Ø 7" x 32" Long Filter Bag, Flow Rate
  • 3 Capacity: Up to 2000 m /hr
  • Gasket / O Ring Material: Neoprene, Nitrile, Silicone, Viton, Buna N, EPDM, PTFE
  • Multiple Bag Filter System Suitable for: 3 Nos. Of Ø 7” x 32” Long Filter Bag, 4 Nos. Of Ø 7” x 32” Long Filter Bag, 5 Nos. Of Ø 7” x 32” Long Filter Bag, 7 Nos. Of Ø 7” x 32” Long Filter Bag, 9 Nos. Of Ø 7” x 32” Long Filter Bag
  • Bag Filter Suitable for Bag Configuration: PP Collar Bag, Rubber Collar Bag, Snap Band Bag, Rigid Ring Bag, Flange Collar Bag, End Connections Available, NPT / BSP Threaded, Flanged Table E / Table F, ANSI B 16.5, ASA 150 # RF, DIN Standard, Tri Clover Adaptors, SMS /Dairy End Connection

Features and Benefits:

  • ASME code stamp available
  • All Housings Made from SS 316 L , SS 316 & SS304 Are Mirror polished to Resist Adhesion of Dirt and Scale
  • Connections, Higher Pressure Ratings, Extra- Length Legs, Heat Jacketing and Adapters for Holding Filter Bags.
  • Covers Are O-Ring Sealed
  • Custom design services
  • Carbon Steel Housing are painted coated externally & internally epoxy coated
  • Flow rates very high up to 2000 m3/hr
  • High Temperature & High Pressure Design are available
  • Housings are permanently piped
  • High dirt holding capacity
  • Low pressure drop & down time
  • Low maintenance & easy to operate
  • Multiple Bag Filter / Duplex Bag Filter /Jacketed Bag filter Unit designs are available
  • Positive sealing arrangement to avoid bypassing
  • Quick opening tri clovers & fly nut design
  • Special Option Include Filter Bag Hold-Down Devices, Sanitary, Construction Different Outlet Large-area, Heavy-Duty Baskets
  • Suitable for PP Collar, Rigid Ring & Snap Band Bags

Applications:

  • Dispensation of Chemicals
  • Inks
  • Resins
  • Coolants
